Grenfell cladding failed to meet standard

Media playback is unsupported on your gadget

Media caption “You would not put ‘E’ on a pet dog kennel”: A market source speak to the BBC’s Tom Symonds

Fire tests performed as early as 2014 revealed cladding utilized on Grenfell Tower cannot fulfill the security requirements initially declared by its producer, a BBC examination has actually discovered.

The company Arconic understood the test score had actually been devalued, however the UK body that accredits structure items stated it was not informed about the modification.

A market source, who has actually dealt with a variety of cladding plans, stated he thought there ought to have been an item recall.

Arconic stated it did share the ranking with “different clients and accreditation authorities”.

It stated the outcomes were likewise released on the site of the French center that performed the tests in 2014 and 2015.

The cladding utilized on Grenfell was Reynobond PE, aluminium panels including a plastic filling, that were popular in cost-conscious council repair plans .

While zinc cladding was at first thought about when the tower was reconditioned in 2015, Reynobond PE was a more affordable choice, conserving almost £ 300,000 .

In the basic European tests for “response to fire”, items are ranked A to F – with A being the leading score. Reynobond PE had actually a certificate based upon a ranking of B.

Some in the building and construction market concerned this to be the necessary requirement for usage on structures over 18m in height, though the federal government states this was incorrect and it needs to have been A ranked.

The score was released in 2008 by the British Board of Agrment (BBA), which utilized technical information supplied by the producer to evaluate the requirement of the panels.

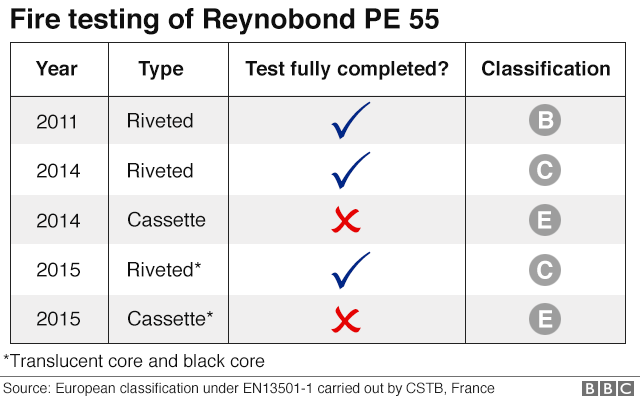

However, the BBC has actually discovered a series of reports commissioned by the maker in 2014 and 2015, throughout the preparation for the Grenfell repair.

Two setups of the cladding, both later on to be fitted at Grenfell, were checked.

One, referred to as “riveted”, was offered a category of C, not B as was mentioned on the certificate.

Another type, the “cassette system”, where the panels are formed into shapes prior to being fitted, was categorized as E. In this case, the reports recommend the screening procedure was not finished.

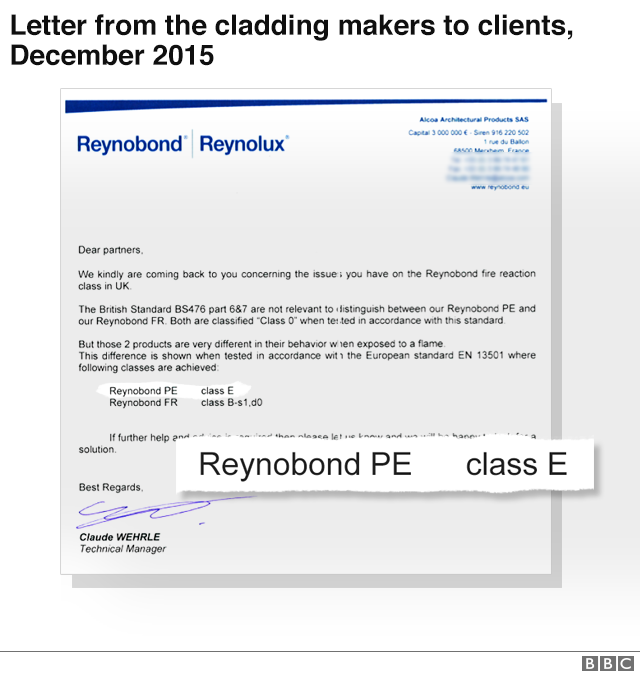

However, the BBC likewise acquired Arconic correspondence sent out to customers from late 2015 where the business appears to validate a few of the panels were ranked class E.

The e-mail particularly resolves “issues about the item’s fire response class in the UK”.

The BBC talked to one source, who has actually dealt with significant cladding plans, though not Grenfell.

He informed us the e-mail was not sent out to his business’s technical department and was just discovered after an extensive search of all business records following the Grenfell fire.

The source stated E ranked cladding would have been undesirable in the tasks he dealt with.

“To be blunt,” he stated, “you would not put E on a pet dog kennel”.

He stated he ought to have been notified of the category results by Arconic with an item recall.

“We would have needed to notify our customer who would have had a task of care to state this product is not certified with constructing control or structure regs and ought to be eliminated from structures.”

That will now take place, however just as an outcome of the Grenfell fire and the loss of 71 lives .

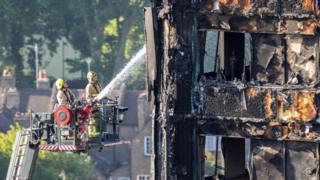

Image copyright AFP
Image caption The fire is thought to have actually begun in a 4th flooring flat however spread out rapidly to swallow up the entire structure

Fire screening is performed frequently by business producing structure products and, since the outcomes are commercially delicate, they are not revealed.

Instead, makers share their outcomes with The British Board of Agrment (BBA).

After seeing the BBC’s proof the BBA stated it “was not informed that there were other test results readily available in addition to those priced quote in the BBA Certificate.

“It is a requirement of the accreditation procedure that the BBA is notified of details like this.”

The inspectors who “sign off” building tasks depend on the precision of the BBA certificates.

Barry Turner, the technical director of Local Authority Building Control, which represents all council structure control groups, stated: “We are extremely based on the producer informing us there has actually been a modification to that item.

“If somebody includes a category which does not satisfy exactly what’s suggested in the structure control assistance then we would state ‘that’s not ideal. Disappear and discover another item.'”

What are the policies in the UK?

Since the Grenfell Tower fire, specialists and ministers have actually argued that structures over 18m had to fulfill a class A requirement, not B.

But numerous in the building market declare the assistance for satisfying the structure guidelines was uncertain up until after the fire.

In England and Wales, class B is still considered the necessary requirement for some structures of less than 18m in height which are close to other structures.

The BBC’s newest findings might likewise lead to analysis of structures in Scotland where a B category can likewise be utilized on high structures under particular situations.

Image copyright PA

How has Arconic reacted?

Arconic informed us: “We formerly offered the category results in different clients and accreditation authorities, and they were likewise published on the CSTB’s openly offered site.”

The CSTB is the French center which performed the tests.

If the reports were readily available on its site, they are not now, and the CSTB was unable to supply them. The BBC got them through other sources.

We might discover no reference in Arconic’s marketing product of the lower categories for the more affordable Reynobond PE cladding.

However, the business markets more pricey variations of its cladding that were categorized A2 and B in the European tests.

Arconic likewise recommended the BBA certificate might not be depended on alone as a mark of fire security.

Its declaration stated: “The appropriate UK building regulations and policies need entities who create the cladding system, such as designers, producers, specialists, or structure owners, to perform their own complete systems screening or analysis of the whole cladding system.”

What more do we understand about the Grenfell cladding?

The BBC can likewise expose Grenfell Tower was fitted with 2 various variations of the Reynobond PE cladding.

Arconic altered the makeup of its item, changing the grey clear plastic with a black product, likewise plastic, throughout the repair of the tower. When exposed to flames, #peeee

It stated the modification was made to guarantee cladding would weather much better in direct sunshine and the test results recommend the brand-new variation carried out much better.

Yet a few of the older cladding was currently set up on Grenfell and other towers, and was not eliminated.

Image caption In a flammability presentation for BBC News, both kinds of cladding dropped streams of melted, flaming plastic.

What did our screening of the panels reveal?

We asked plastics specialists at Impact Solutions near Edinburgh to evaluate the older and more recent variations of the panel for the BBC.

They were both concluded made from polyethylene plastic.

However, chemical analysis recommended the initial Reynobond panel had a wax active ingredient, potentially contributed to make it much easier and more affordable to form into sheets.

The Impact Solutions professionals think this compound was gotten rid of for the more recent variation of the cladding.

At our demand, the business exposed the panels to a flame under lab conditions, showing that the more recent variation burned for a somewhat much shorter duration than the older.

But both samples ignited within 2 minutes, both dropped streams of melted, flaming plastic.

Les Rose, from Impact Solutions, explained the speed at which the plastic charred as “relatively remarkable”, observing that it seemed “feeding the flames”.

He related to neither kind of cladding as appropriate for repairing to high structures.

Since the Grenfell catastrophe, Arconic has withdrawn Reynobond PE from the marketplace for all developing usages.

The business is now being required to divulge proof to examinations by the cops and the Grenfell Tower public questions.
